產地：歐洲
保養期：1 年

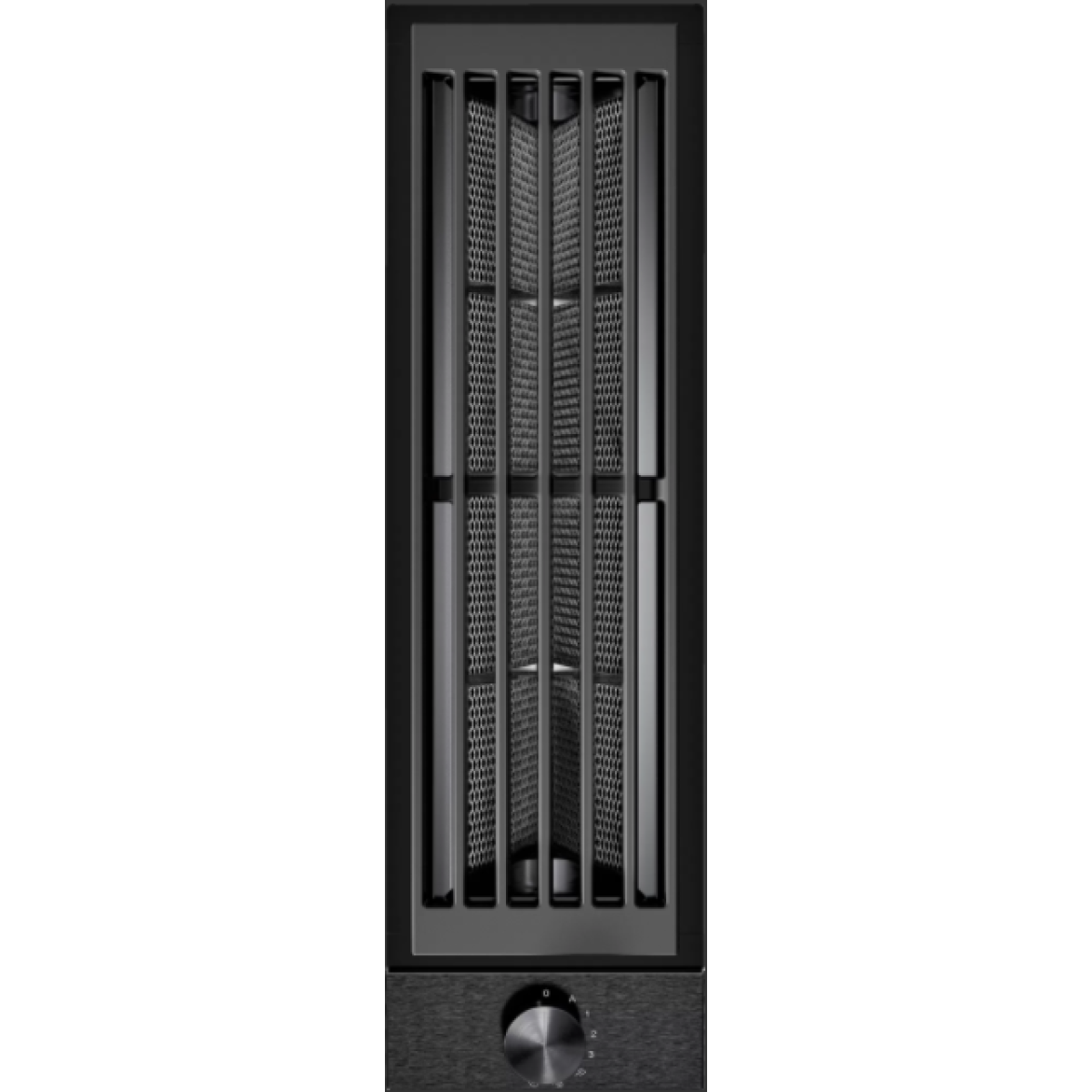

Can be combined with the cooktops of the Vario 200 series to a harmonic unity.
Highly efficient ventilation system at the cooktop integrated in the worktop
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Low planning and installation effort
Low-noise system with the motor AR 410 110
Output
Power levels depend on the remote fan unit.
Features
Control knobs with illuminated ring.
Three electronically controlled power levels and an intensive mode.
Automatic function with sensor-controlled run-on function.
Large-scale metal grease filter with high grease absorption.
Grease filter, dishwasher-safe.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille, dishwasher-safe.
Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Product rating
Consumption data is referred to a configuration with the remote fan unit AR 403 122.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Energy consumption 48.3 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class -.
Grease filter efficiency class B.
Sound level min. 56 dB / max. 71 dB normal mode.
Planning notes
Please refer to page XX for recommended configurations of downdraft ventilations and remote fan units and the needed ducting elements.
For each VL one remote fan unit is recommended.
Maximum cooktop width between two VL 60 cm.
If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
Please read additional planning notes on page xx.
Connection
Connecting cable 1.7 m between VL and remote fan unit.
