產地：歐洲
尺寸：高 185 mm X 闊 1050 mm X 深 600 mm
保養期：1 年

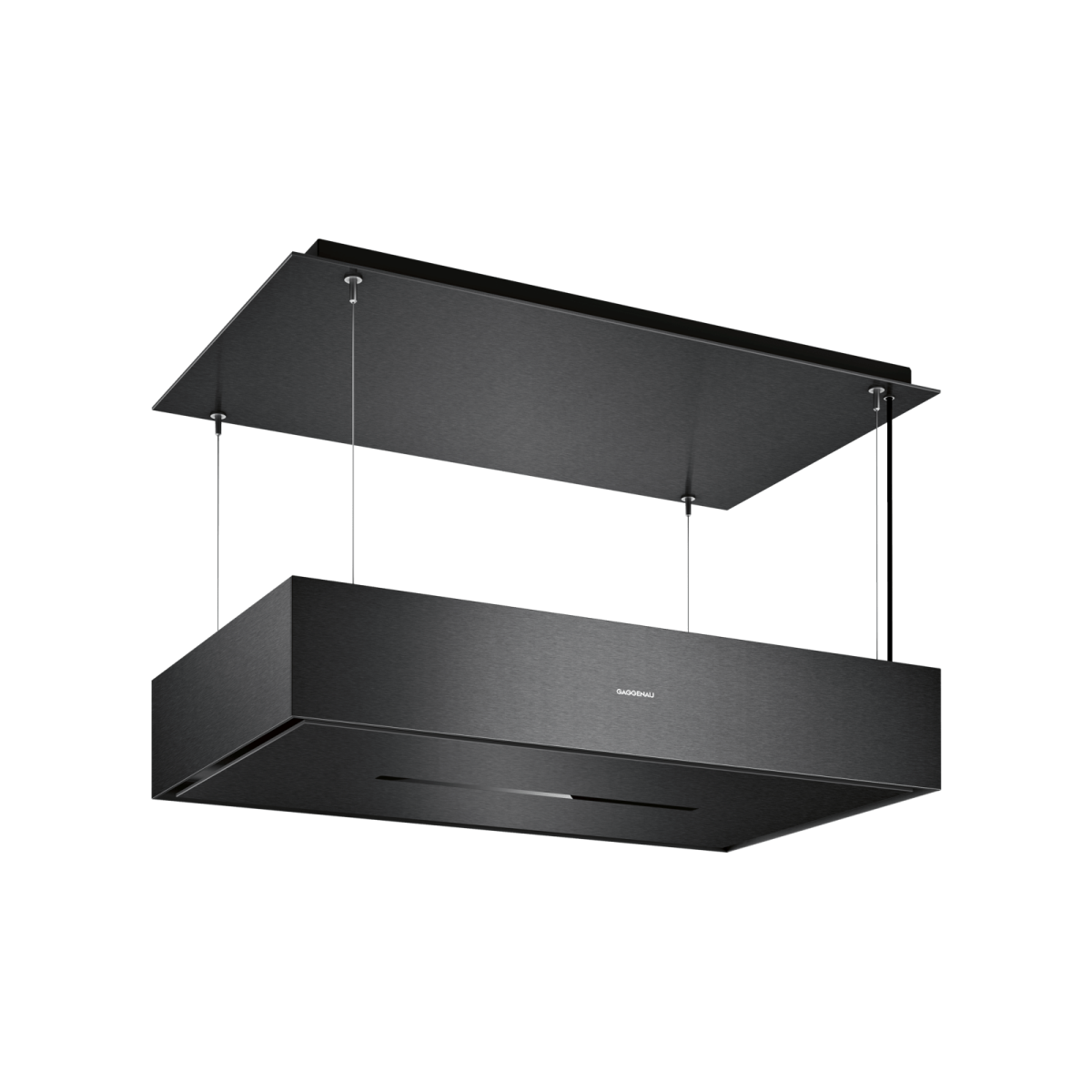

Height adjustable ceiling ventilation, when not in use it can be completely lifted onto the ceiling or integrated in the ceiling
Precision crafted, solid aluminium design
Energy-saving, low-noise fan
Rim extraction
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Output
Performance and noise level, output level 3/Intensive:
Air output according to DIN EN 61591.
Sound power level according to EN 60704-3.
Sound pressure level according to EN 60704-13.
Air recirculation:
515 / 697 m³/h.
67 / 74 dB (A) re 1 pW.
Odour reduction: > 90 %
Features
Three electronically controlled power levels and an intensive mode.
Remote control is included in delivery.
Automatic function with sensor-controlled run-on function.
Interval ventilation, 6 min.
Grease filter saturation indicator.
Activated charcoal filter saturation indicator.
3 metal grease filters, dishwasher-safe.
3 activated charcoal filters.
Protection against allergen particles due to special treatment.
Gaggenau Black anodized aluminium.
Fan technology with highly efficient, brushless DC motor.
Easy mounting system for simple installation and alignement.
Neutral white LED light (3500 K), continuously dimmable.
Light colour in different white tones (2700 - 5000 Kelvin) can be adjusted via Home Connect.
Lamp output 6 x 3W LED lights.
Illuminance 1156 lx continuously dimmable.
Cooktop-based ventilation control (with suitable cooktop).
Integrated WiFi module for digital services
(Home Connect).
The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country – for further information please check: www.home-connect.com
Planning notes
Installation directly on the ceiling with provided ceiling mounting plate.
Recommended ceiling height up to 3.50 m.
The ceiling ventilation has to be handled as a room ventilation when distance to cooktop is larger than 120 cm since the direct capture of vapours will be limited. The needed airflow is given by an air exchange rate of 10 to 12 times the room volume.
A suitable load-bearing substructure is required for securing the extractor hood. Never fit the appliance directly onto plasterboard or similar lightweight construction materials.
Clearance above gas appliances min. 70 cm (more than total load gas 12 kW min. 75 cm).
Clearance above electric appliances min. 70 cm.
Appliance weight: approx. 74.
Connection
Total connected load 250 W.
Plan a connection cable.
Power consumption standby/display off 0.4 W.
Please check the user manual for how to switch off the WiFi module.
